product presentation
Traditional manual seedling cultivation is cumbersome, inefficient, and the seedlings produced are uneven. It has become unable to meet the requirements of large-scale seedling cultivation. With the development of agriculture, people's requirements for the quality and germination rate of seedlings have become increasingly higher. We have no choice but to keep up with the development of society and select a seedling cultivation machine that suits us.
Traditional manual seedling cultivation is cumbersome, inefficient, and the seedlings produced are uneven. It has become unable to meet the requirements of large-scale seedling cultivation. With the development of agriculture, people's requirements for the quality and germination rate of seedlings have become increasingly higher. We have no choice but to keep up with the development of society and select a seedling cultivation machine that suits us.
This equipment can complete substrate lifting and discarding - leveling - making holes - sowing - secondary filling - leveling - watering - receiving, eight functions, and is a continuous production line operation. The operation is simple, and the automation degree is high. The Huihuang servo control system operates in coordination with various brand components to ensure the stability of the entire production line, precise sowing, with a precision rate of up to 98%, high efficiency, and can sow 1200 discs per hour. It greatly saves labor and improves work efficiency.

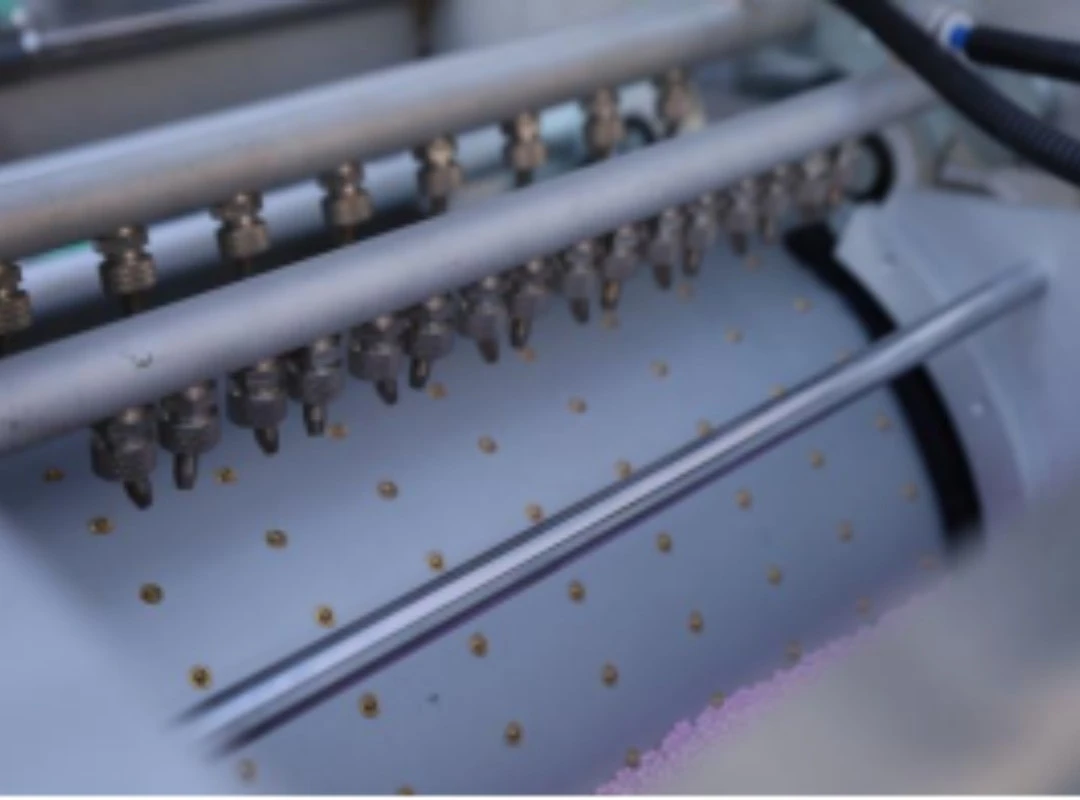

The 210mm super-large diameter drum is used for sowing. One rotation of the drum can sow 2-4 discs. The speed is stable.
The body material is carbon steel sheet metal integration + electrostatic powder coating. The appearance is beautiful, resistant to high temperature and corrosion, and has a long service life.
Product Specifications
|
Model |
2BP-1200A |
|
Main materials |
Carbon steel sheet metal integrated with electrostatic powder coating |
|
Length * Width * Height |
11100*2400*1800mm |
|
Whol machine power/voltage (excluding air pump) |
8.5KW/380V |
|
Working principle |
Electrical hybrid system |
|
Equipment Composition |
Matrix lifting for tray loading, roller-type precise point dispensing, secondary backfilling, watering, and tray connection |
|
Control system/pneumatic components |
Huichuan servo industrial PLC / Imported Taiwan Yadea servo motor components |
|
control mode |
Touch screen (with system)+knob |
|
function |
spot planting, secondary backfilling, leveling again, watering, tray connection |
|
Opposite photoelectric sensor/Contact-type sensor |
3 sets of Panasonic photoelectric sensors/3 OMRON Contact Sensors |
|
Applicable seed range (particle size) |
Between 0.3-12mm, the seed shape is not limited and has a wide range of applications |
|
Applicable plug specifications |
54 * 28 (cm) 72 holes, 105 holes, 128 holes, etc., Foam floating trays and special-shaped cell trays can be customized. |
|
Sowing speed |
1200 discs/hour (depending on seed and plug specifications) |
|
Sowing accuracy (seed rate) |
96% |
|
Configure the specifications of the air pump (to be provided by the user) |
380v,7.5kw,0.9m³/min |
|
Job Characteristics and Advantages |
The conveying devices for tray loading and seeding support variable frequency speed regulation, perfectly matching the subsequent processes.Equipped with intelligent control, it stops soil filling and seeding automatically when no trays are detected.Adopting PLC combined with knob one-touch operation, the integrated workflow including substrate lifting & tray filling, hole pressing, seeding, secondary soil backfilling, watering and tray receiving is completed in one go, featuring simple and quick operation.It comes with a seed recovery device to avoid seed waste.The large-diameter drum improves seeding efficiency. Built-in Inovance servo control system enables compatibility with national standard plastic trays and special-shaped plug trays. |
Work Process
|
Unit |
picture |
core component |
function description |
|
Matrix lifting and discharging unit |
|
The substrate is lifted to the storage bin and the trays are loaded into the bin by the photoelectric sensor detecting the trays. |
The thickness of the substrate tray is between 20 and 120 mm. |
|
precise playback machine |
|
The seeds are adsorbed onto the sowing machine for sowing |
One rotation of the drum can sow 2 to 4 rows. |
|
secondary backfilling machine |
|
Recover the seeded seed trays with additional soil |
The soil covering thickness is 10 to 20 millimeters. |
|
water spraying machine |
|
The water volume can be adjusted. |
|
|
receiving disc device |
|
acceptance of offer |
Outgrowth case
Customer Cases
Our seedling cultivation machines are highly popular overseas, covering countries such as North America, the Netherlands, and Italy. The equipment is highly automated, effectively solving the problem of labor shortage in those regions and facilitating the efficient development of the overseas seedling cultivation industry.
